Place of Origin:
China
Brand Name:
WABCO

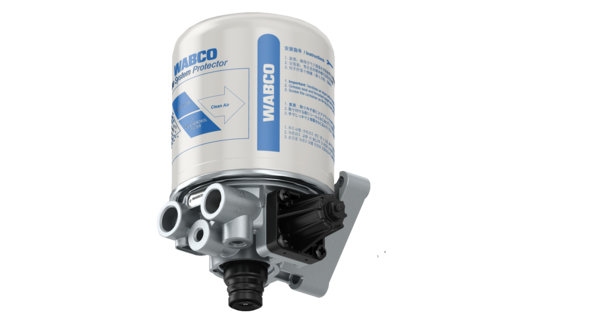

WABCO Air System Protector Air Dryer Assembly For Heavy Duty Vehicles OEM
| Technical Specifications | |
| Brand | WABCO |
| Part type | Premium original quality |
| Product category | Device |
| Calculated Volume(dm³) | 7.258 |
| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 145 psi |
| Exhaust | JED-463-0 |
| Heating connection | M27 x 1 |
| Max. operating pressure | 188.5 psi |
| Opening pressure | 188.55 psi |
| Operational range | 10.15 psi |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M16 x 1.5 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 24 V |
| Size (mm x mm x mm) | 194 x 145 x 258 |
| Weight (kg) | 3.5 |
| Weight (lb) | 7.716 |
WABCO OEM Quality
Utilizes WABCO’s industry-leading premium molecular sieve particles. Offers superior moisture adsorption capacity and chemical stability, even under extreme high-temperature and high-pressure profiles.
Integrated Oil-Water Separation
Features an advanced coalescing filter that intercepts oil aerosols, carbon deposits, and fine sludge before they reach the desiccant bed, protecting both the drying medium and downstream braking valves.
Smart Auto Drain Valve
The integrated heavy-duty automatic purge/drain valve ejects accumulated water and contaminants rapidly during the unloading cycle, ensuring continuous system self-regeneration.
Extended Braking System Life & Reduced Pipeline Corrosion
Completely eliminates moisture travel within the pneumatic lines, stopping rust formation on brake chambers, leveling valves, and ABS/EBS modulators, while preventing winter line freeze-ups.
Long Maintenance Intervals
Engineered for durability; our extended service life reduces routine filter canister replacement frequency, drastically lowering the Total Cost of Ownership (TCO) for global fleet operators.
